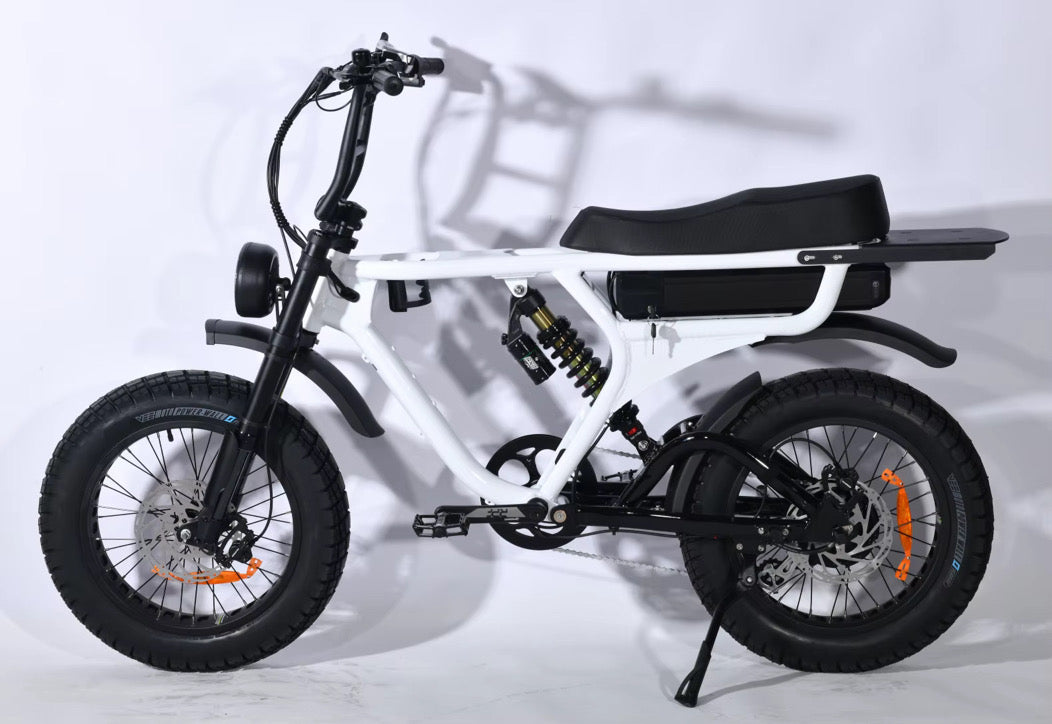

The Beast

Please email ‘sales@lg-ebikes.com’ with your colour choice if you selected custom. Please provide a colour name and hex code. If you want one of our pre-made colours but don’t know what they look like, please also email.

Frame & Build

• Frame Material: Aluminum Alloy 6061
• Suspension Fork: EXSHO Adjustable Suspension Fork
• Rear Suspension: KKE Adjustable Suspension
• Pedals: Aluminum Pedals
• Fenders: Plastic Fenders
• Footpegs: Included

Wheels & Drivetrain

• Tyres: 20 × 4.0 inch VEE Tyres
• Chainwheel: 52T Doublewall Aluminum Chainwheel
• Freewheel: 11–28T DNP Freewheel
• Chain: KMC Z7RB Chain
• Shifter: Shimano TX50 Shifter
• Derailleur: Shimano M310 Derailleur

Brakes

• Brake Levers: TEKTRO Brake Levers with E-Cutoff
• Brakes: Front & Rear 2-Piston Hydraulic Disc Brakes
• Rotor Size: 203mm Rotors

Motor & Electronics

• Motor: BAFANG 52V 1000W Brushless Rear Motor + BAFANG 52V 1000W Brushless Front Motor (If optioned)
• Controller: 52V 30A Intelligent Controller
• Display: BAFANG 860C Color Display
• Speed Sensor: 12 Magnet Speed Sensor
• Lighting: Head & Tail Light Included

Battery & Charging

• Battery: 52V 20Ah Samsung Lithium Battery or 52V 25Ah Samsung Lithium Battery + 52V 15Ah Samsung Lithium Battery (If optioned)
• Charger Input: 52V 3A, 110–240V Compatible

Performance

• Range (Throttle Only): Approx. 40 km or 60 km (If dual battery selected)
• Charging Time: 5–7 Hours

Dimensions & Capacity

• Bike Dimensions: 156 × 29 × 92 cm
• Weight: 45kg (Single battery + motor) or 55kg (Dual bartery + motor)
• Maximum Load Capacity: 150kg
